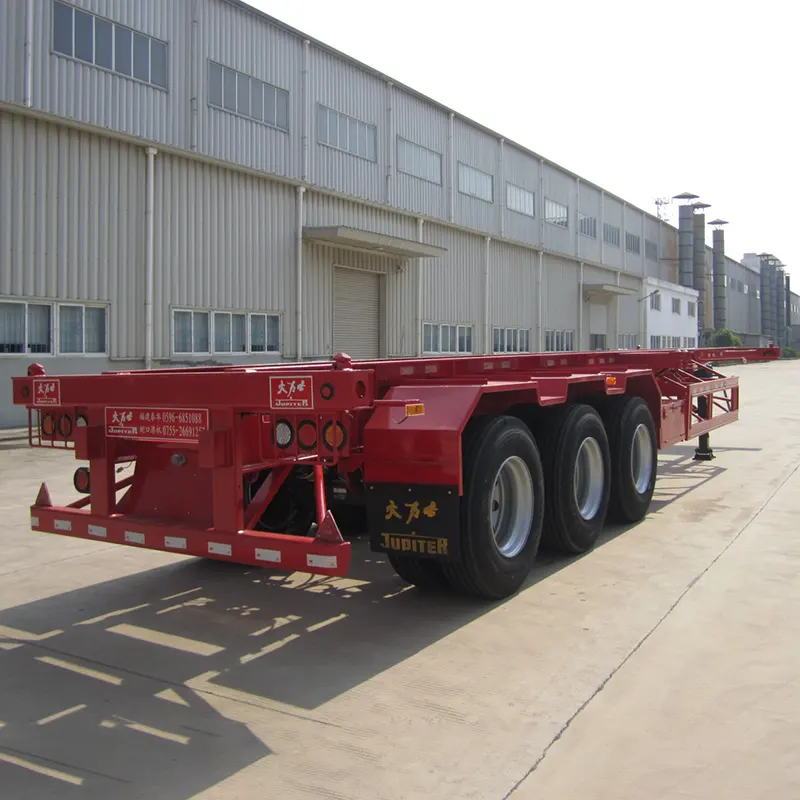

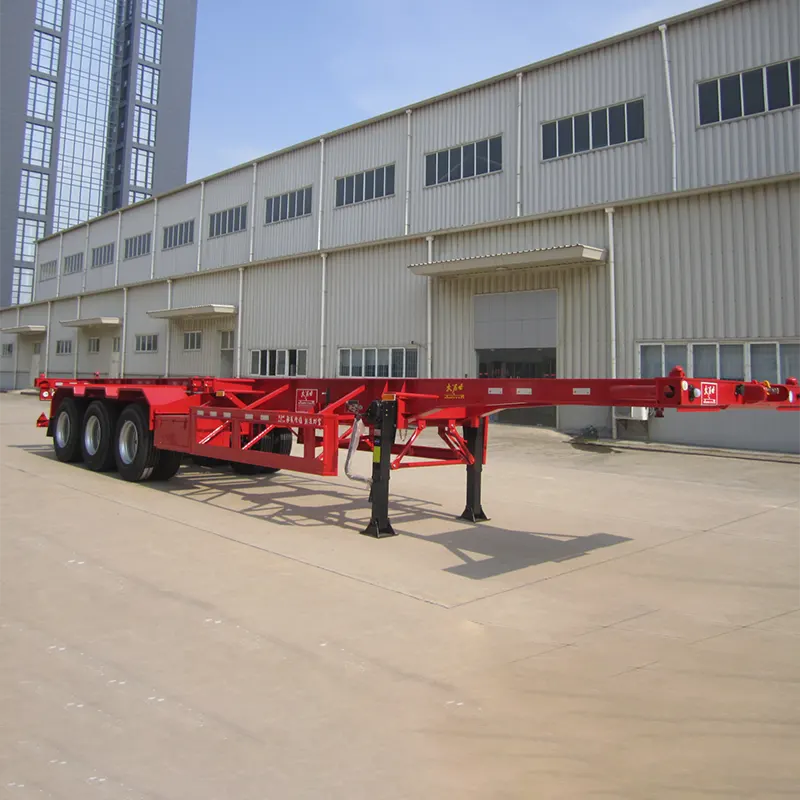

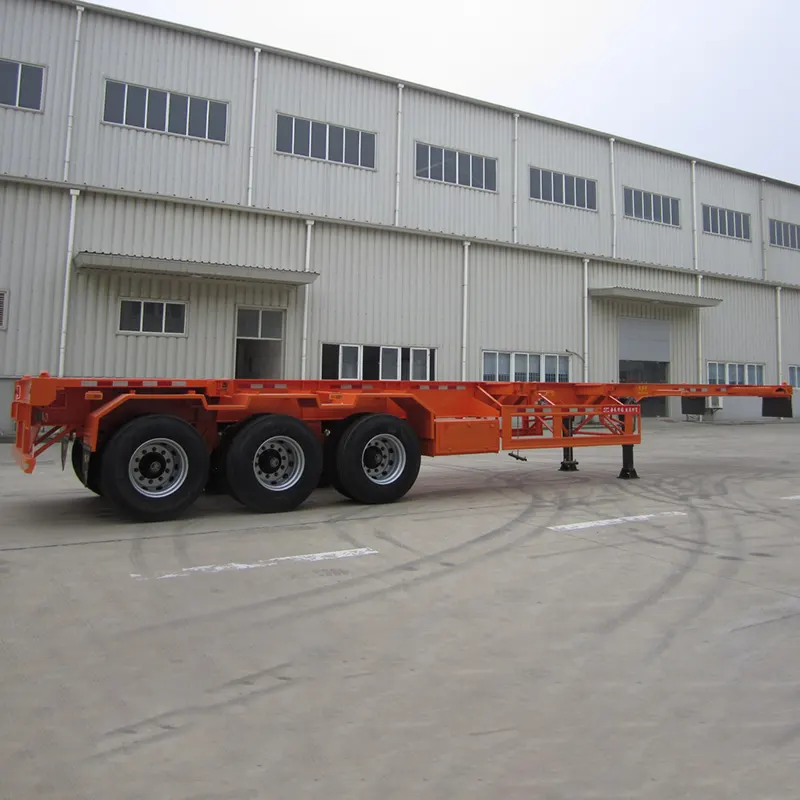

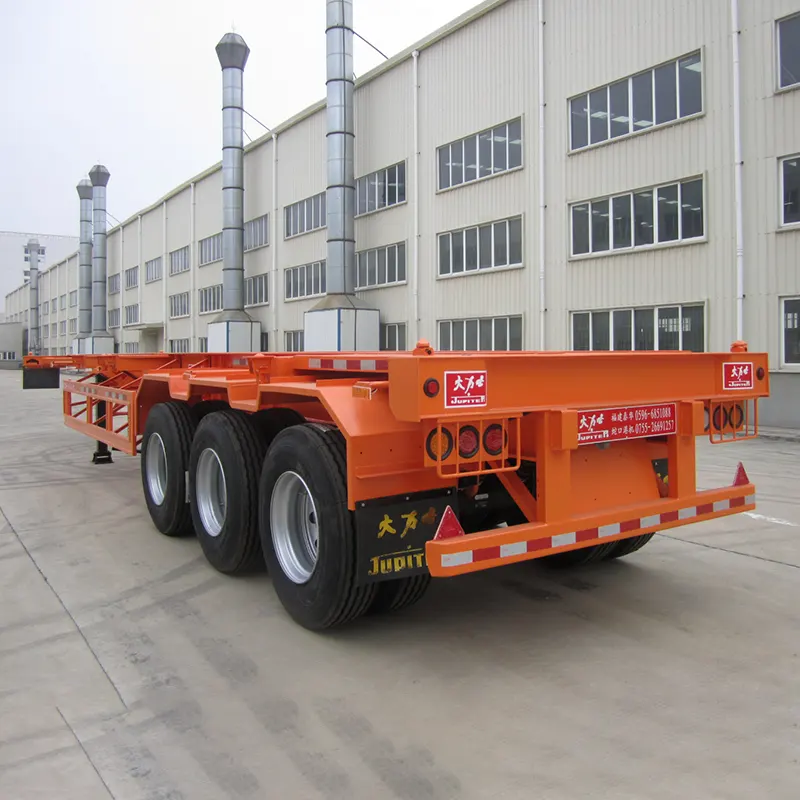

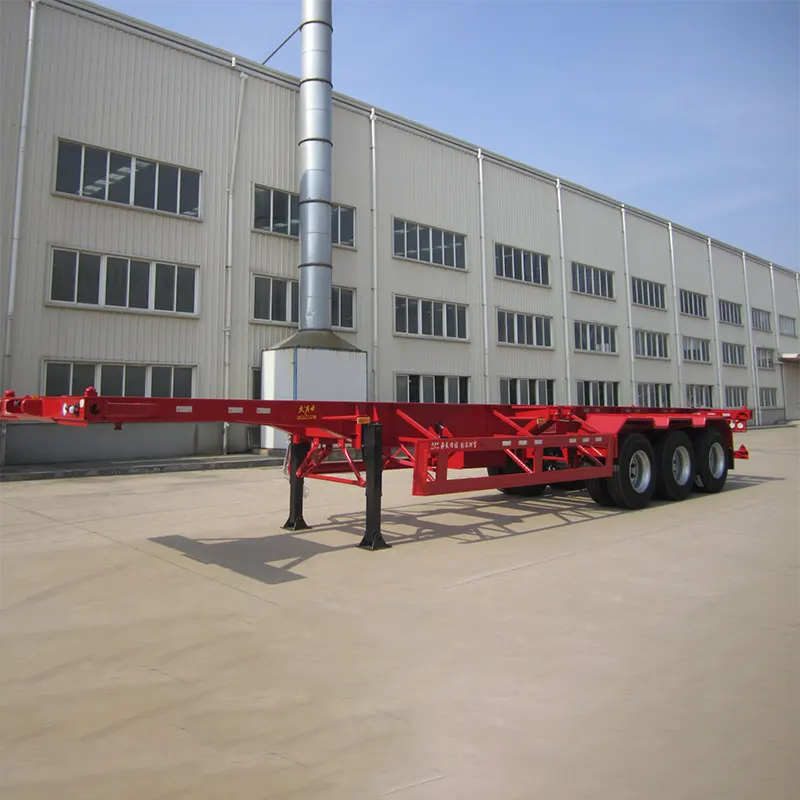

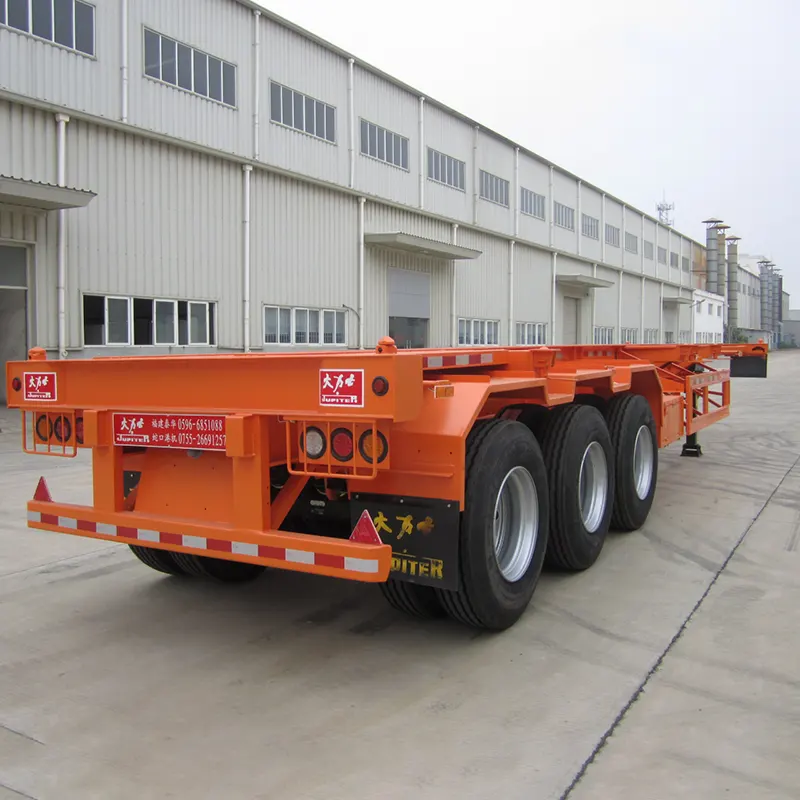

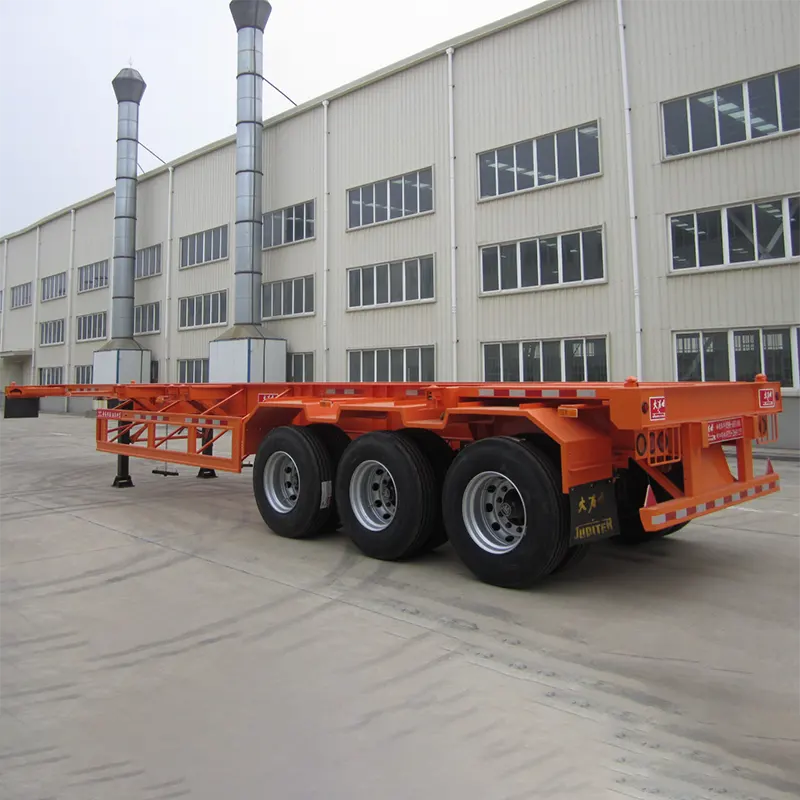

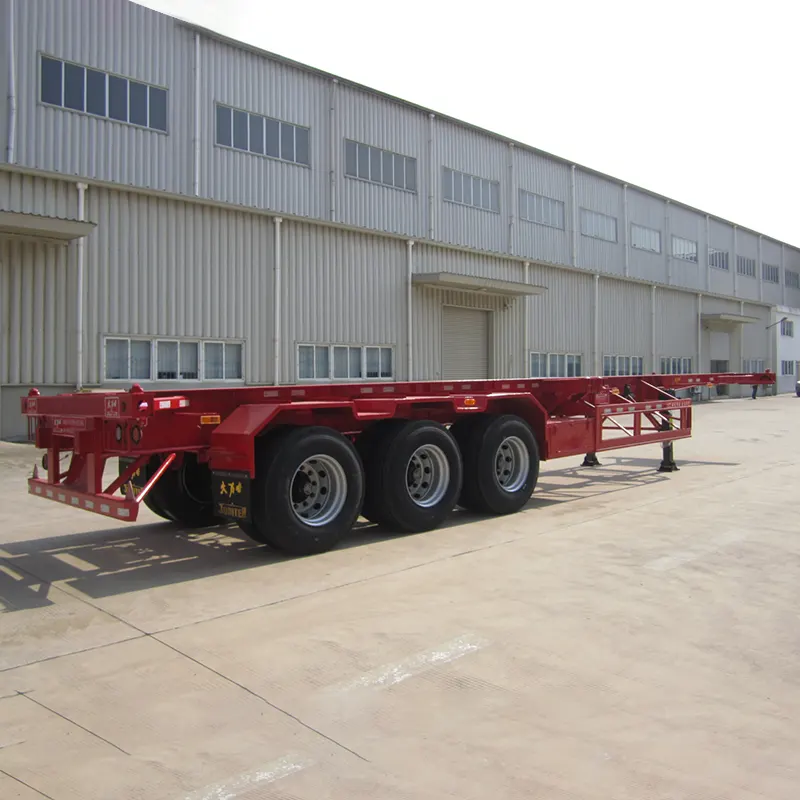

40ft 3-axle gooseneck skeleton semi trailer with Fuwa 13T axle

Specification:

Type:

40FT3 Axles Gooseneck Skeleton Trailer

Model:

JPT9401TJZG

Dimension:

Length:

12,420mm

Width:

2,480mm

Height:

1,560mm

Wheel Base:

7500+1310+1310mm

Frame & Structure:

Main beam:

Material Q345B. Fabricated “H” beam height 500mm, Top flange thickness 12mm, Middle web thickness6mm, Bottom flange thickness 14mm

Side beam:

14# channel steel

Platform:

2.5mm thick diamond plate with supporting channel, 4 lines 40*30 shaped steel

Kingpin:

2’(50#), bolted in type

Twist lock:

6 sets twist locks

Welding standard:

All welding are to be done by qualified welder per applicable national standard

Painting:

Shot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um

Running gear:

Suspension:

mechanicalsuspension,heavy duty leaf spring 8pcs-16mmx90mm, China

Axle:

Factory standard 3 pcs*13 ton capacity, China

Brake system:

Dual line pneumatic brake, SAE hose and connector,without ABS

Brake chamber:

4 unitsT30/30 spring brakechambers, 2 units T30 brake chambers

Air tank:

40L,1pc, China

Tire:

11R22.5, 12 pcs. China

Rim:

8.25*22.5 steel disc wheel, 10 holes ISO, 12 pcs. China

Landing gear:

Fuwa 28T two speed telescopic manual landing gear

Electrical System:

Voltage:

24 Volt

Receptacle:

7 way socket SAE standard, China

Front marker lamp:

White

Side marker lamp:

White & Red

Rear lamp:

Red

Turn signal lamp:

Amber

Reflector:

Per customer requirement

Wiring:

Electric cable protected by PVC conduit on main frame

Accessories:

Mud guard:

Steel mud guard

Spare wheel carriers:

1 pc

Tool box:

1 pc

Note: All the details not mentioned above should comply with Chinese regulations.If any component or structure changed, the price shall be modified accordingly.
