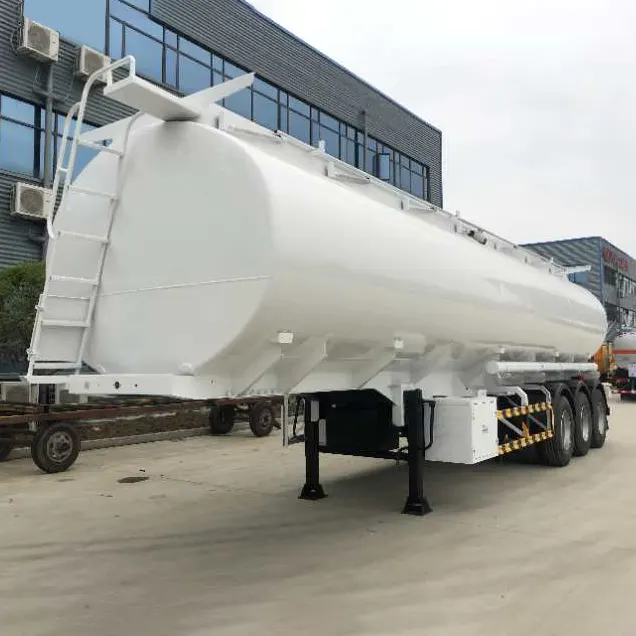

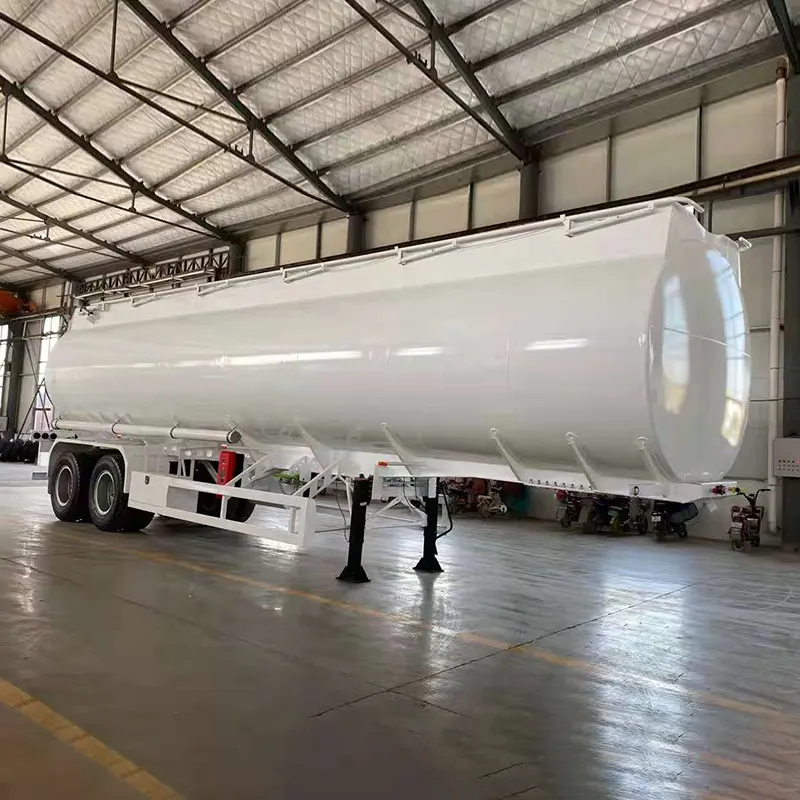

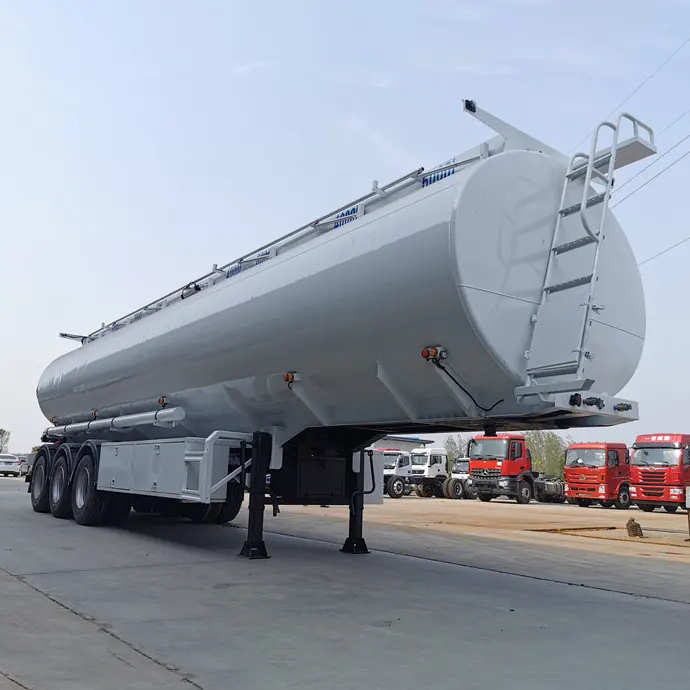

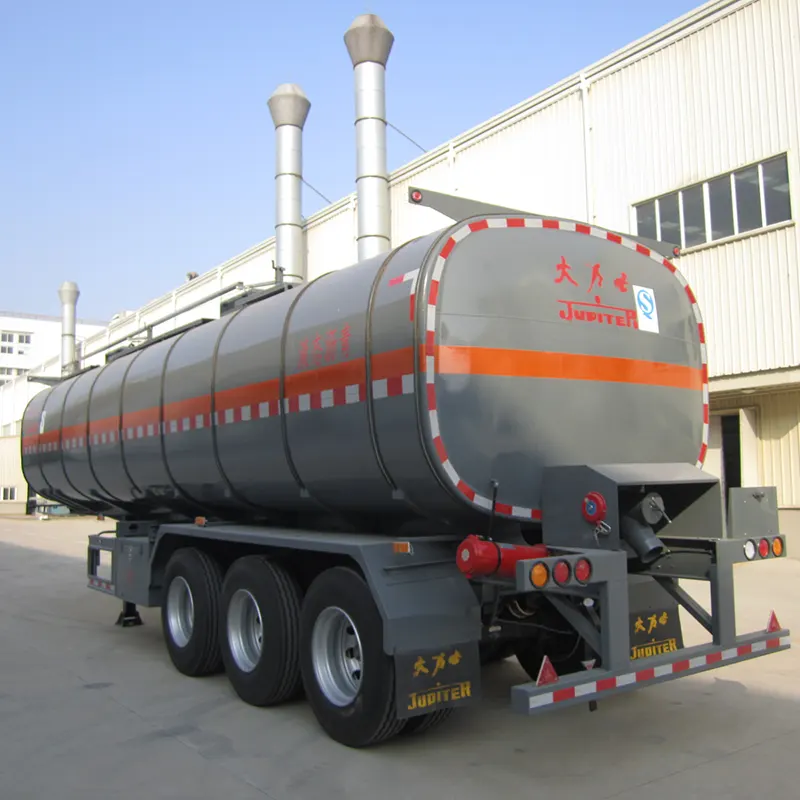

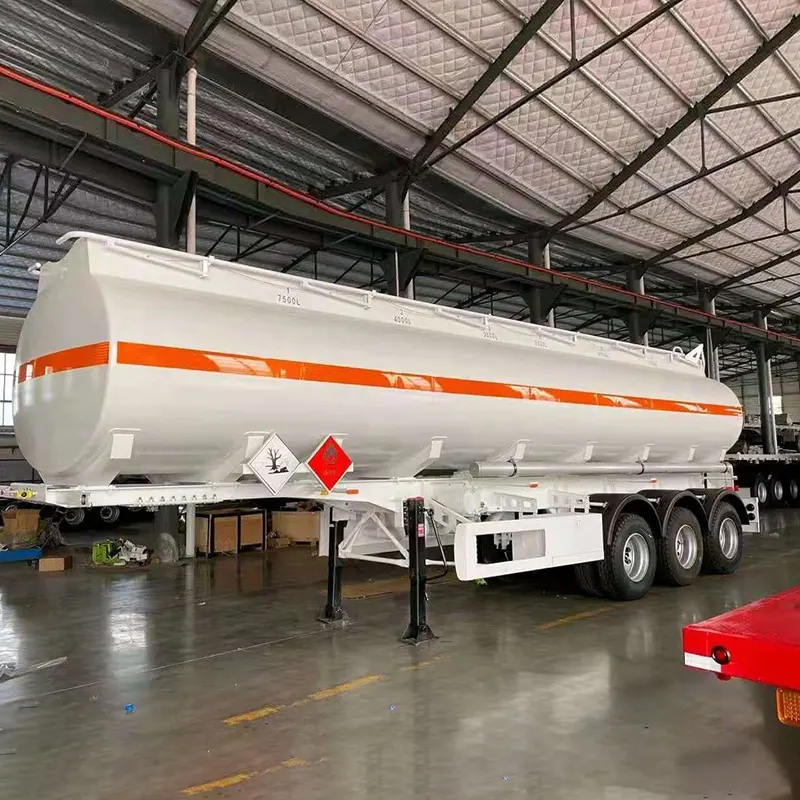

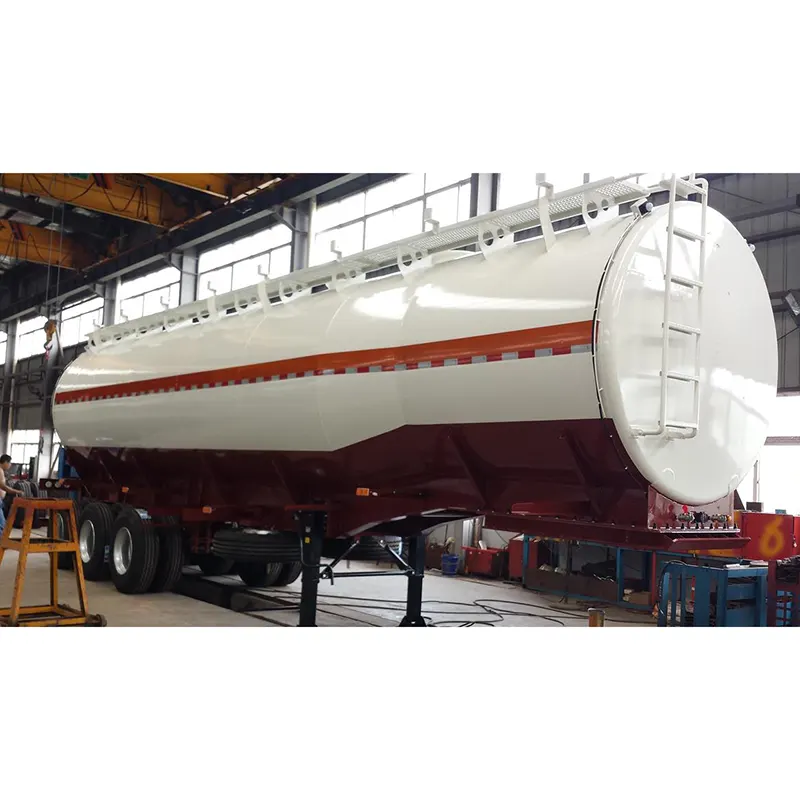

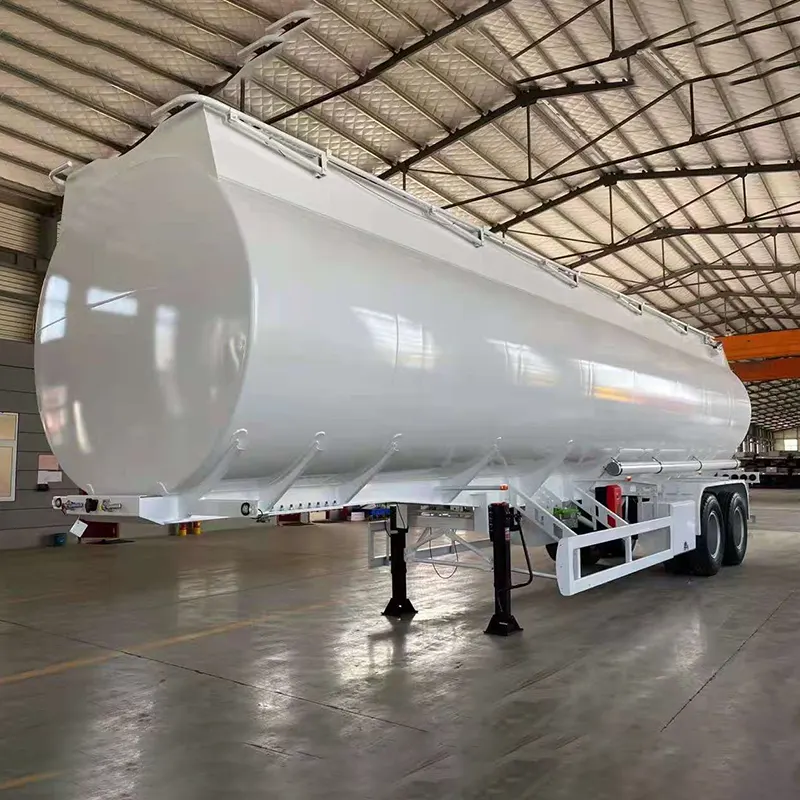

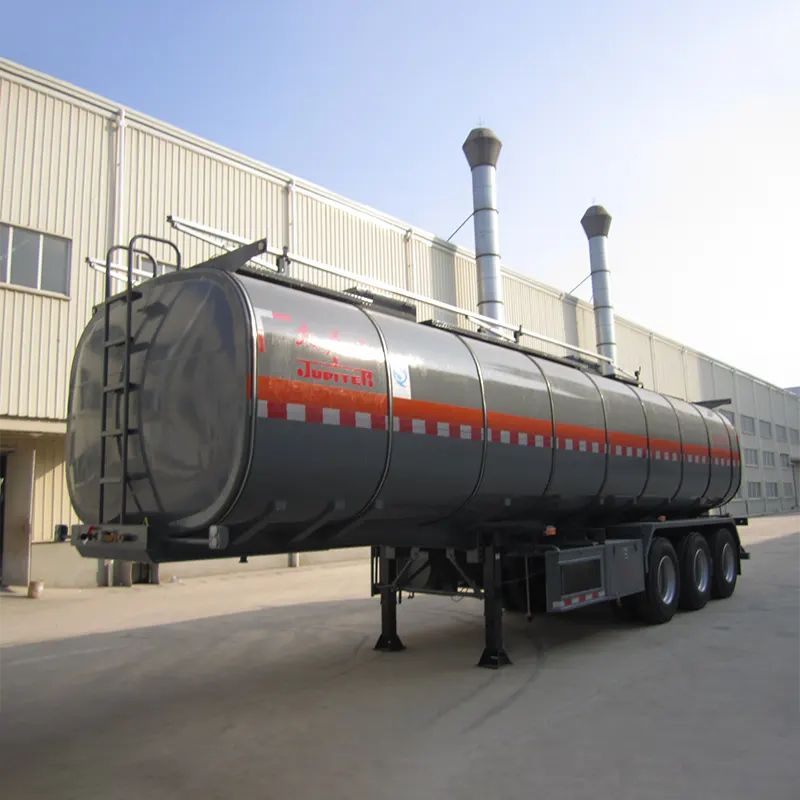

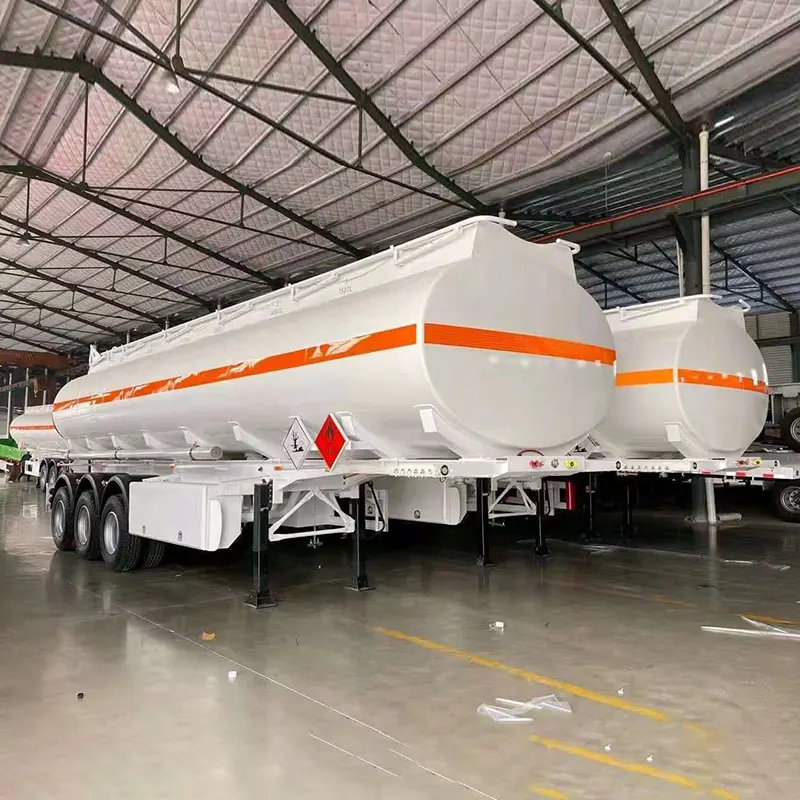

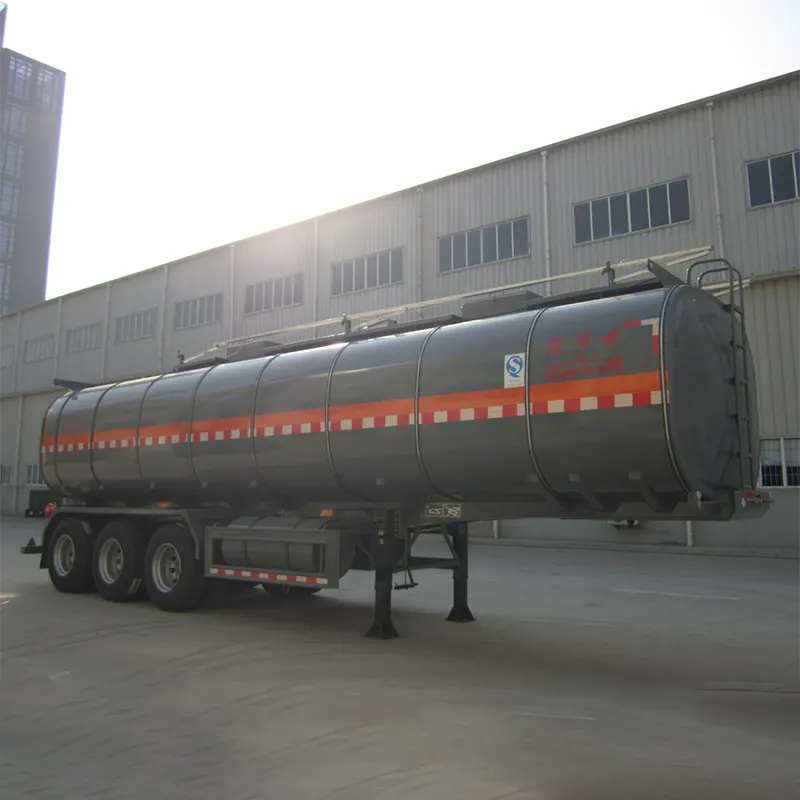

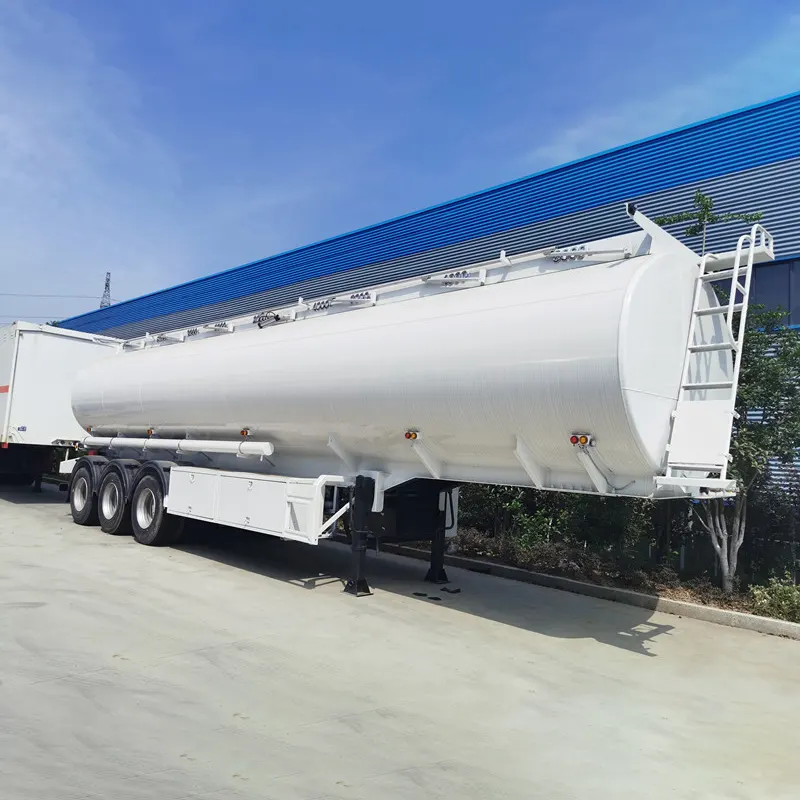

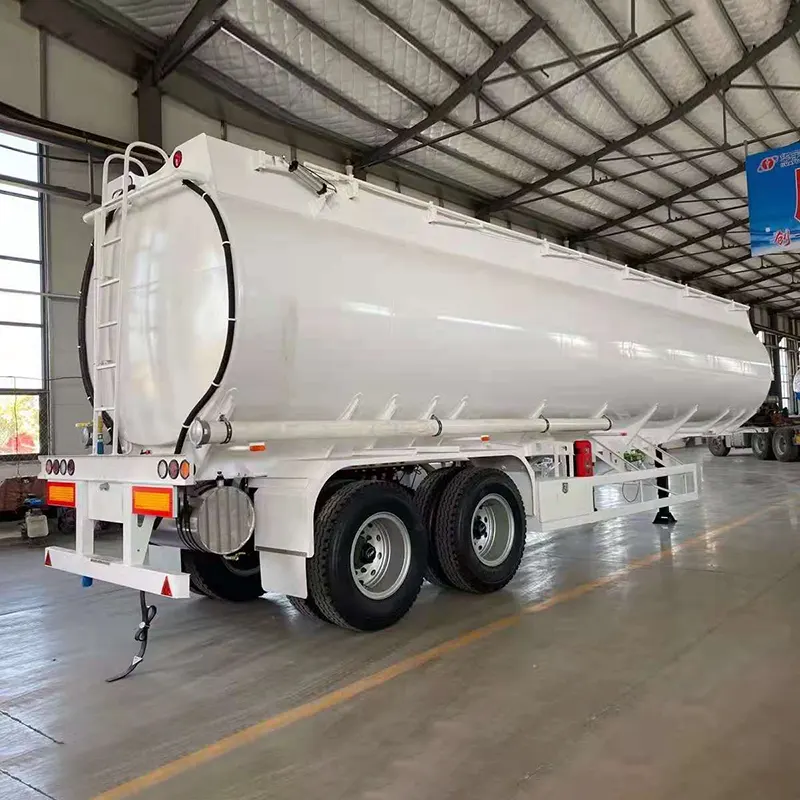

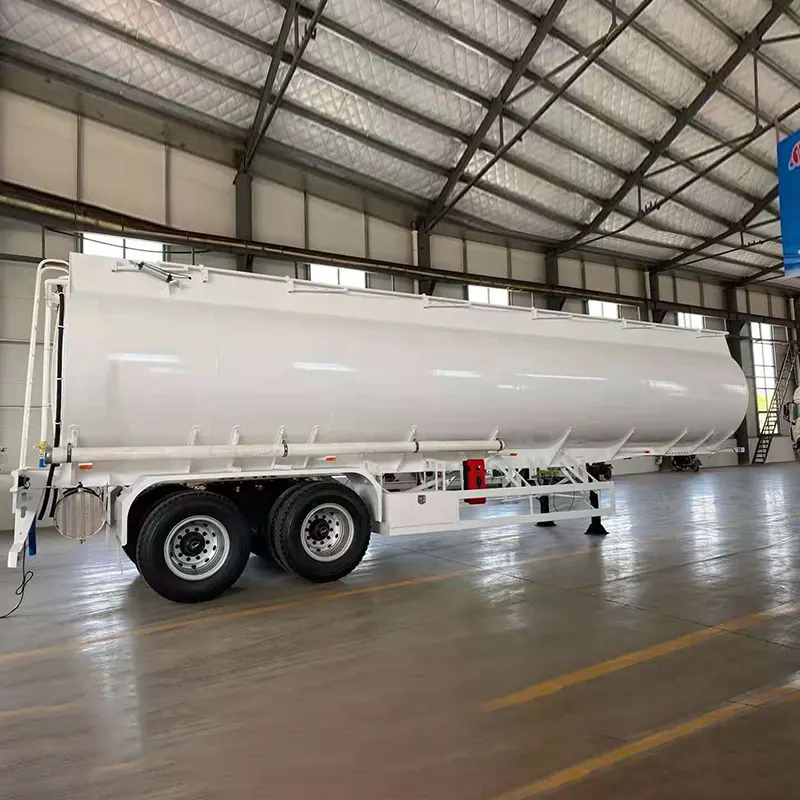

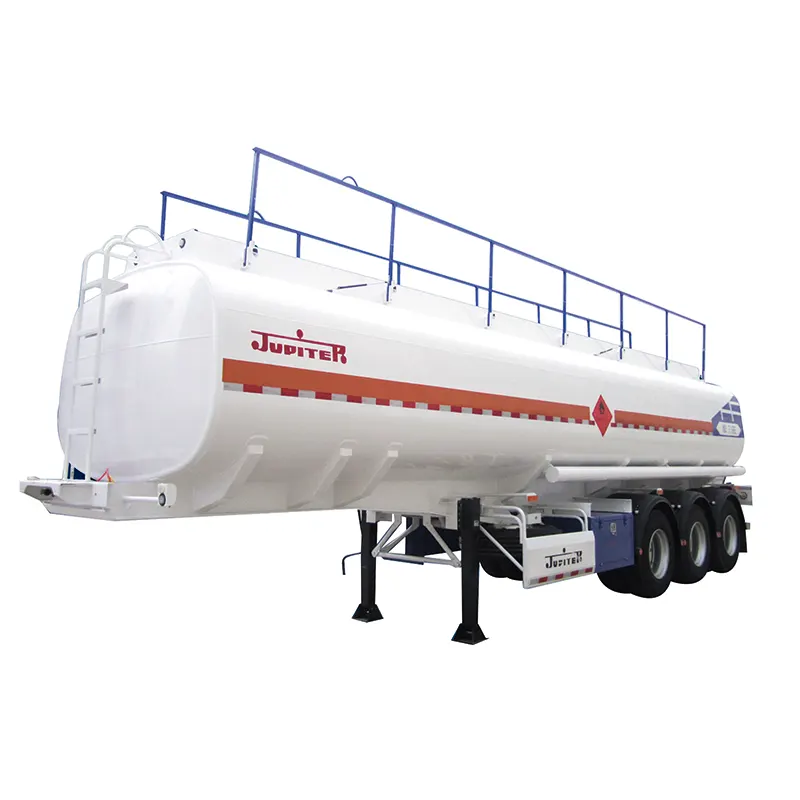

45cbm 45000l Carbon Steel Oil Tanker Semi Trailer with 5 Compartments

Model:

JPT9405GYY

Dimensions:

Length:

11,800mm

Width:

2,500mm

Height:

3,860mm

Kingpin Location:

950mm from the front face of the front bolster

Axle Spacer:

6,600mm + 1,310mm + 1,310mm

Landing Gear Location:

2,500mm from the kingpin center to the landing gear

Weight:

Payload:

40,000Kg

Tare Weight:

Approx. 11,500Kg.

G.V.W.R:

Approx. 51,500Kg

Tank:

Volume:

40,000L + 5% Vapor

Compartment:

9 (6-4-6-4-2-6-2-6-4)

Tank Body & Dish End:

Carbon Steel Q345B, Thickness: 5mm,&Thickness: 6mm

Compartment Plate:

Carbon Steel Q345B, Thickness: 5mm

Design Standard:

 Straight Cylinderical Tank.

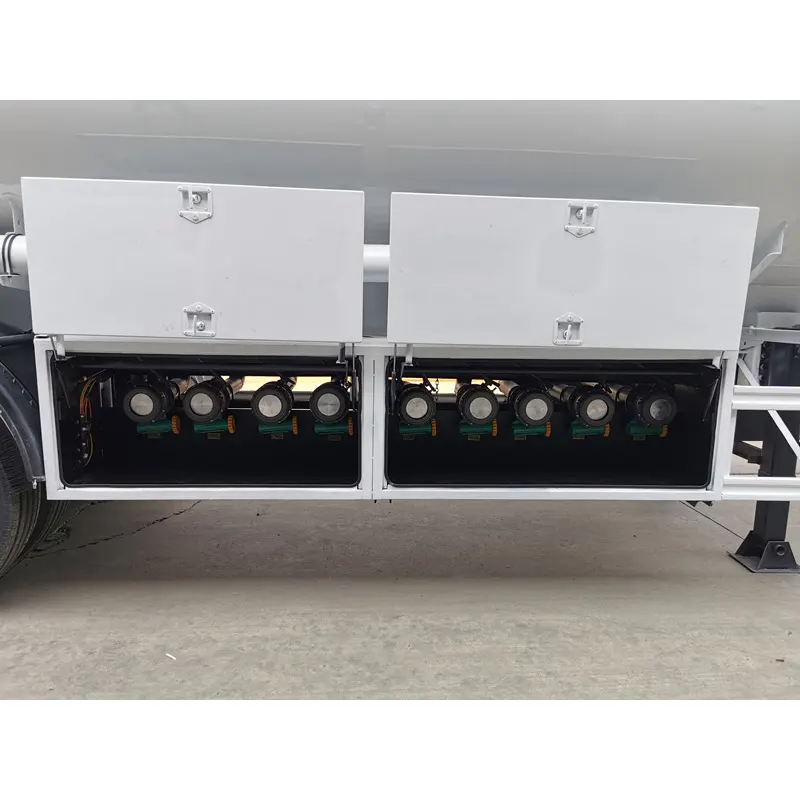

Bottom Safety Valve:

JIALONG, 9 Pcs. (One 4" pneumatical emergency valve per compartment - EURO; One 4"x3" Gravity Adaptor with sight glass per compartment; One 4" API Valve and dust cover per compartment

API Cap:

JIALONG 9 Pcs.

Combination Switch:

JIALONG, Air Operated, 1 Sets

Emergency Switch:

Factory Standard, with cover box, 2 Pcs.

Discharge Valve:

4", Discharge Valves are angled at approximately 5 Degrees downward.

Discharge Pipe:

API Reduction Connector:

3"

Discharge Hose:

3"

Manhole:

JIALONG, 20inches, Aluminum, 9 pcs., with Anti- Theft design. With braath Valve

Capacity Indicators:

Factory Standard, 9 Pcs.

Oil Water Separator:

Factory Standard, 1 Pc.

Working Pressure:

0.2 Mpa

Test Pressure:

0.3 Mpa

Welding Standard:

All welding are to be done by qualified welder per applicable national standard. X-Ray checking.

Painting:

Shot blast at SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um.

Running Gear:

Kingpin:

JOST, KZ1012-50, 2 inches Bolted Type

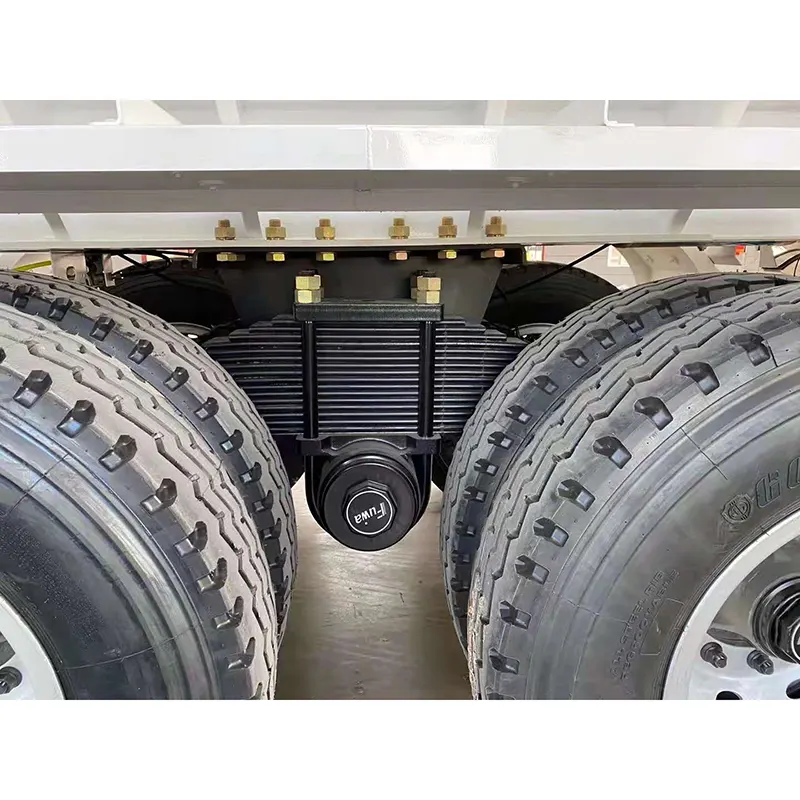

Suspension:

FUWA Brand Mechanical Suspension with 10 pcs Leaf Spring: 13mm Thinkness x 90mm Width.

Axle:

FUWA 150x150 Square Beam Axle, 3Pcs.*13 Ton Capacity

Brake System:

Dual line Pneumatic Brake, with Hose & Connector.

ABS System:

4S/2M

Brake Chamber:

T30/30 Spring Brake System on 2 Axles

Air Tank:

50L, 2Pcs.

Emergency Relay Valve:

WABCO BRAND

Rim:

9.0-22.5,  10 Holes ISO, 14 Pcs. (Included 2 Spare Tires)

Tire:

AEOLUS 12R22.5, 14 Pcs. (Included 2 Spare Tires)

Landing Gear:

JOST E100 Two Speed Telescopic manual landing gear

Electrical System:

Voltage:

24V

Receptacle:

7 Way Socket

Front Marker Lamp:

LED Lights, included Front Marker Lamp, Side Marker Lamp, Turn Signal Lamp, Rear Lamp. Electric cable protected by PVC conduit on main frame.

Reflector:

Triangle Reflector, Red Color

Wiring:

FLAMMABLE NO SMOKING WITHIN 50 FEET

Accessories:

Common Line Discharge Valve:

Carbon Steel pipe with 4"  Discharge Valve, included a 3" or 2.5" Adaptor

Fire Extinguisher:

10 Kgs. Type, 2 Sets.

Mud Guard:

Rubber mud guard with brush

Walkway:

YELLOW Colour, Anti-Slip Painting.

Handrail:

800mm Height, Pneumatic Controlling

Wheel Stopper:

2 Pcs.

Spare Wheel Carriers:

Q345, 2 Pcs.

Fender:

Black Plastic Type, with Brush, 6 Pcs.

Rail:

Pneumatic Control Hand Rail, Both Side, Aluminum Type

Tool Box:

800mm Length, 2 Pcs.

Pipe:

One Piece of 4" Diameter*6m length pipe each tank, for customer use.

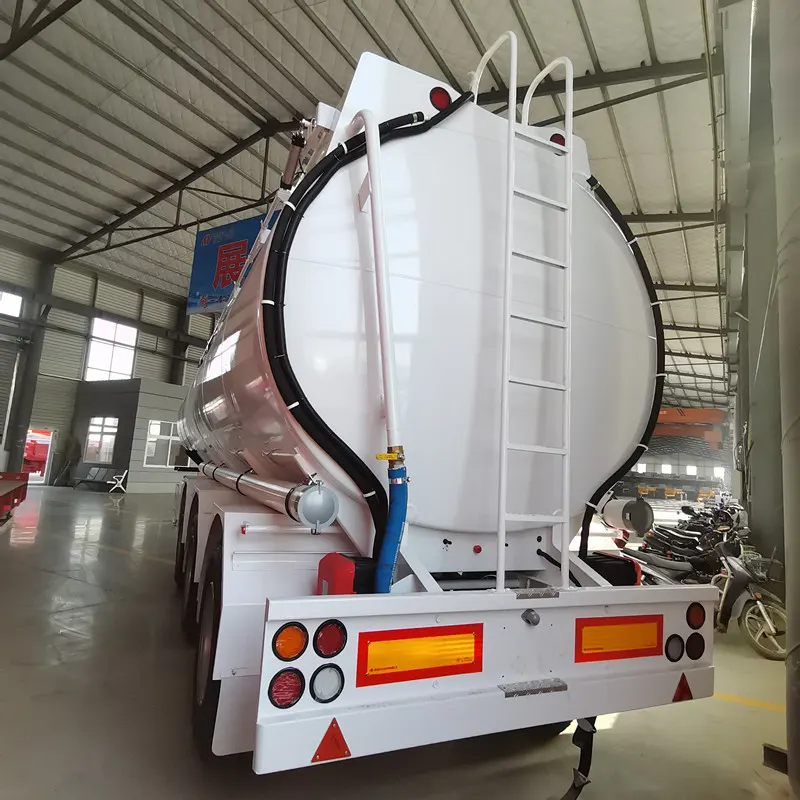

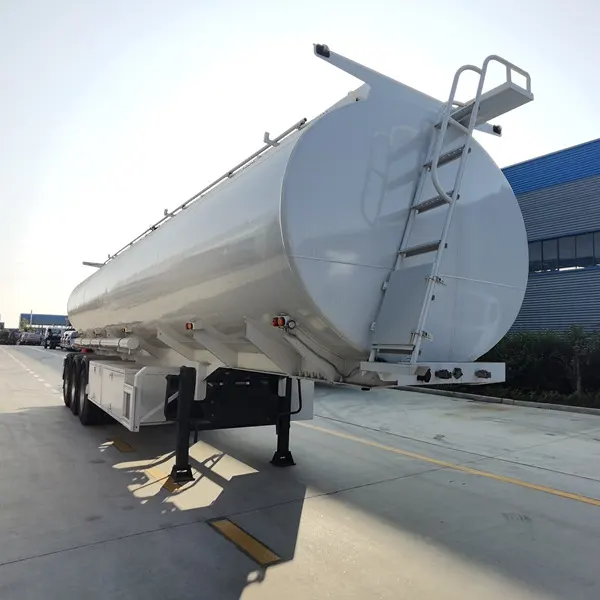

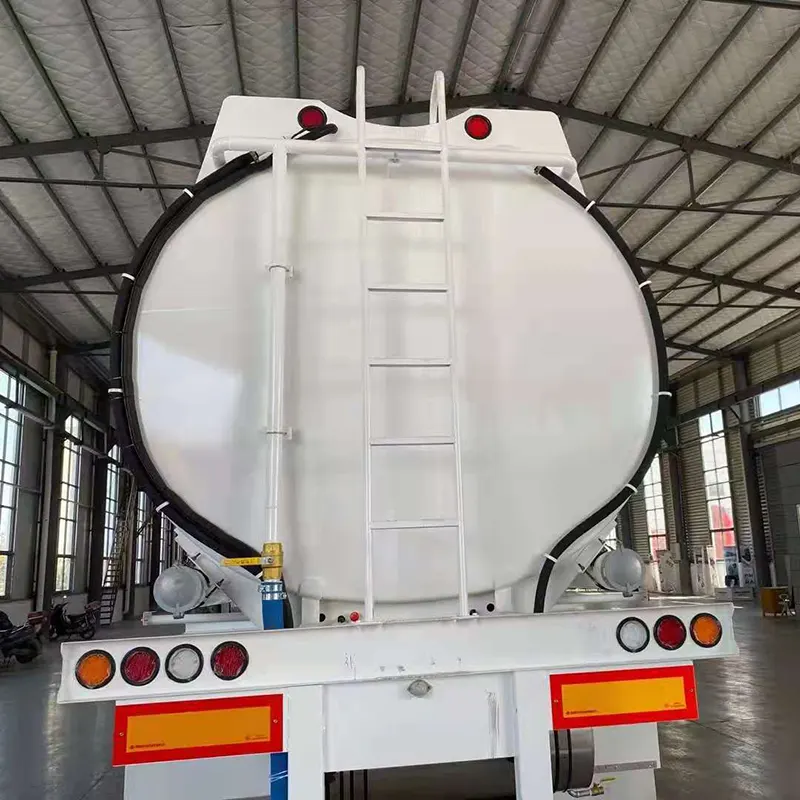

Ladder:

Carbon Steel Type, Front Design

Bumper:

 1 Set Rear Bumper, 1 Set Rear Secondary Bumper, 1 Set Side under Run,
