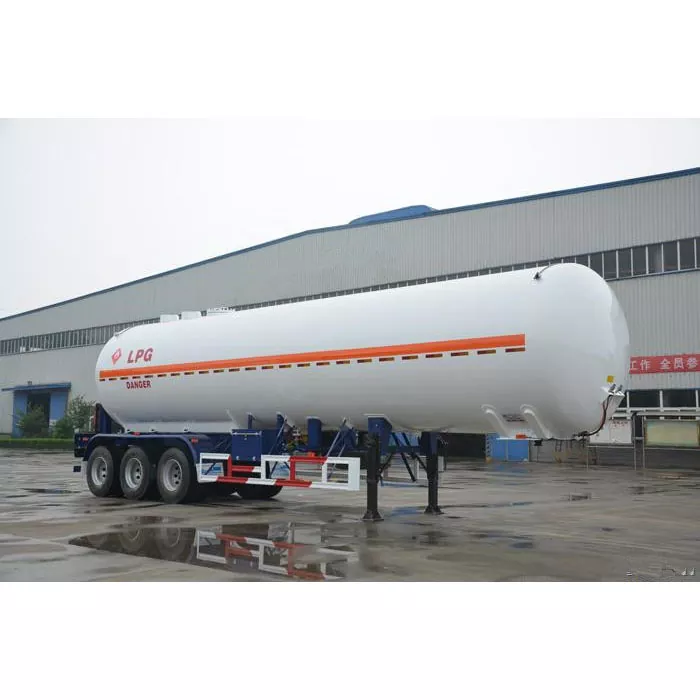

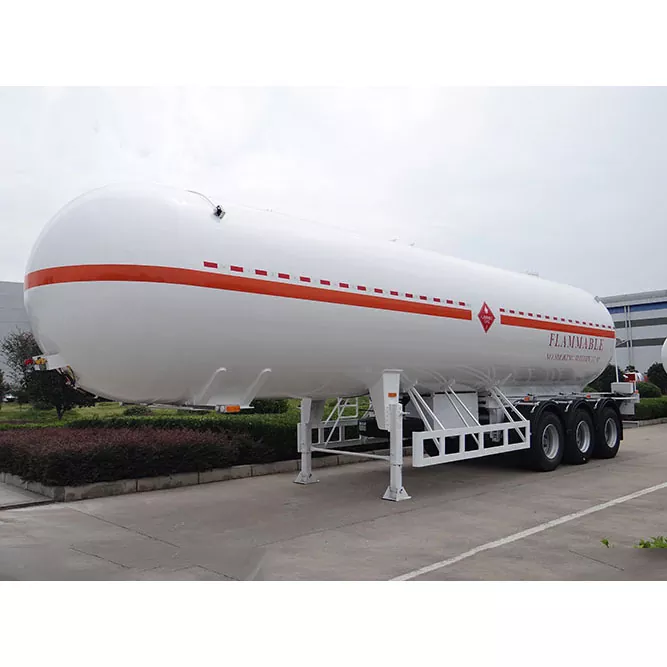

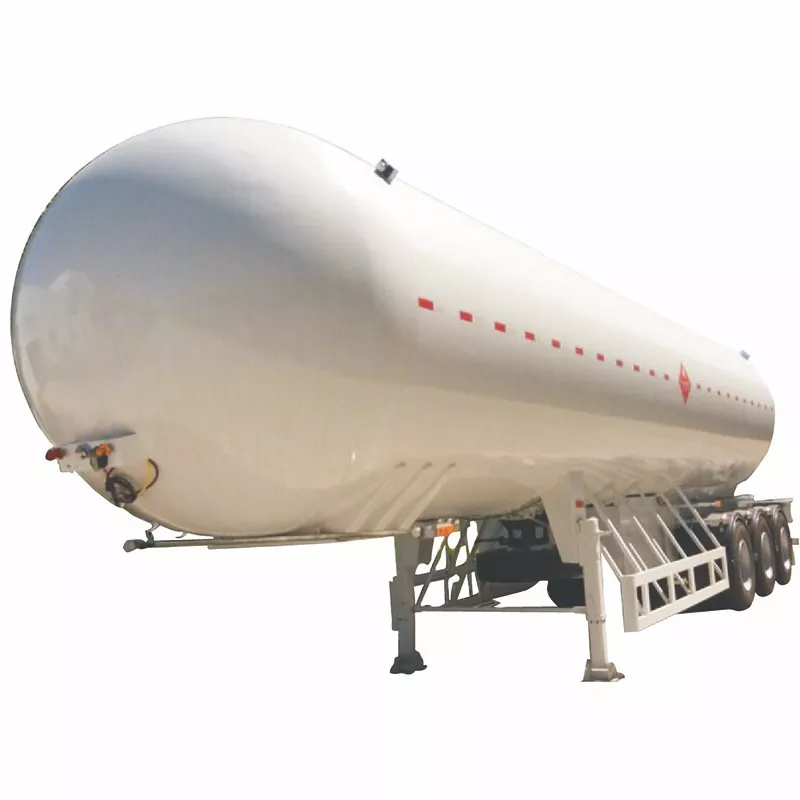

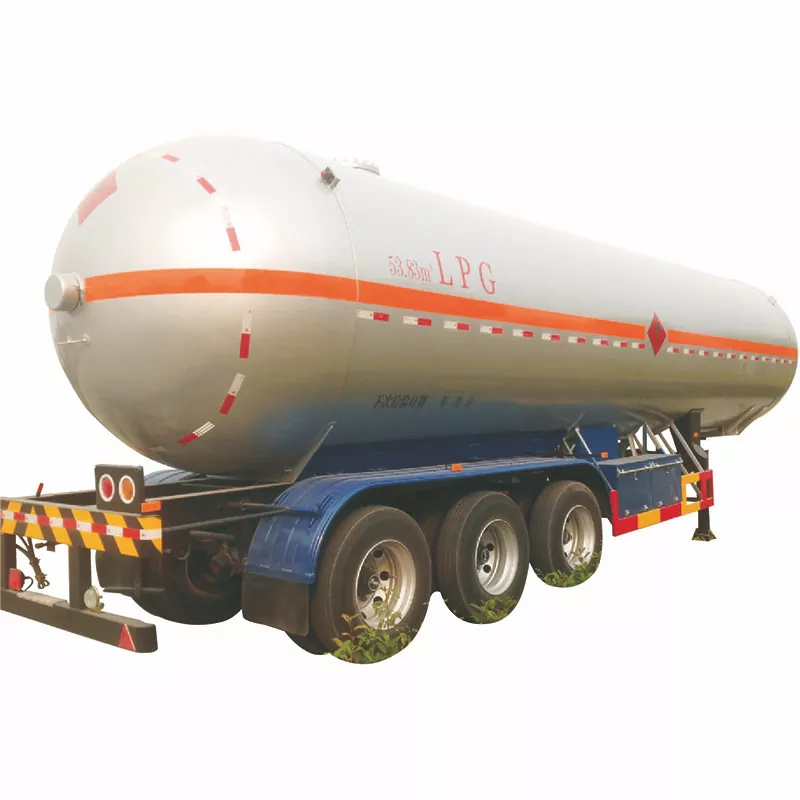

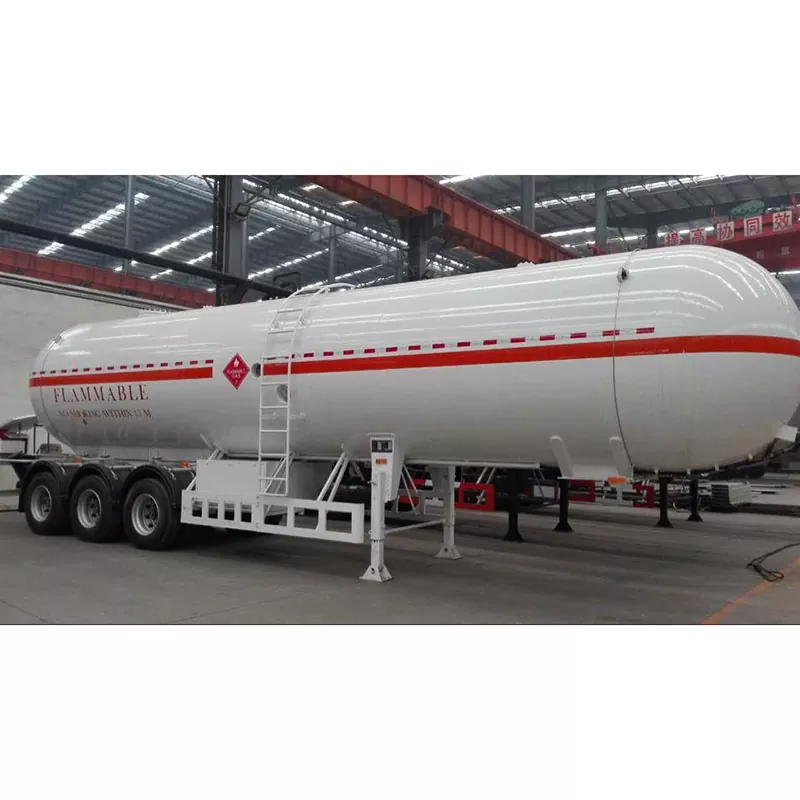

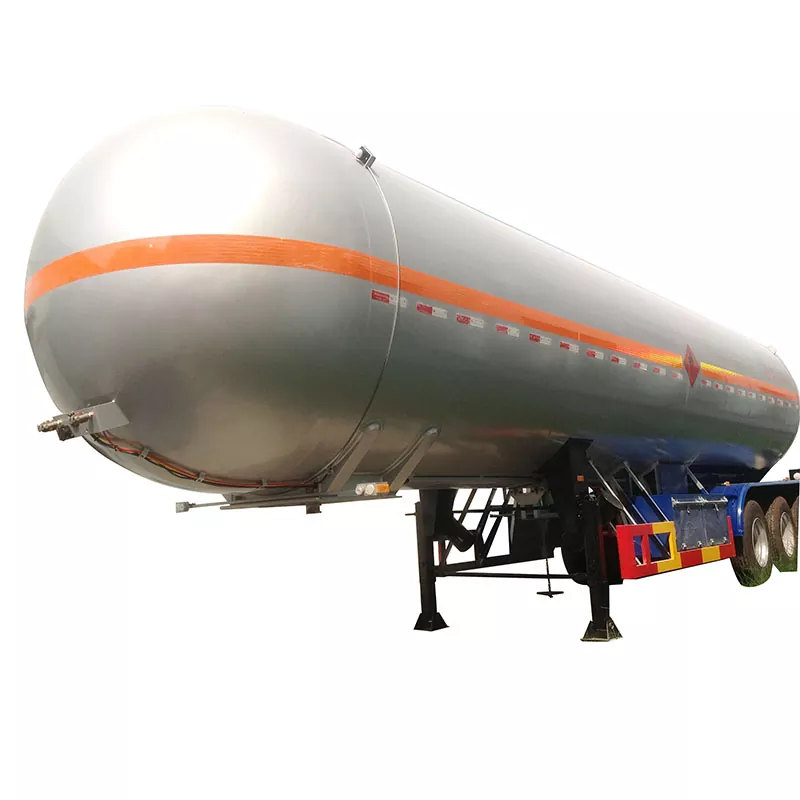

50cbm 3 Axles Lpg Tank Semitrailer with 50cbm Capacity Fuwa Axle

Color

Optional

Payload

24800 kgs

Tare Weight

15200 kgs

Wheel Base

7970+1310+1310 (mm)

Rim & Tyres

 9.0*22.5 Wheel Rim and 12R22.5 tires

Axle Brand

13T

No. Of the Axles

3

Axle-load

24000 kg

Pieces of leaf-spring

10/10/10

Suspension

Heavy duty leaf spring suspension

Departure Angle

22

Front/Rear Overhang

1205 mm

Dimensions

12965×2500X3990 (mm)

Tanker size

12715mmx2499mm

Main Beam

Automatic submerged arc welded

Main beams Q370R through cross beams Q235

Body material Q235B manganese plates,

automatic submerged arc welded

Brake System

Automatic air brakes

Double pipe line air brake, front two axle is 30 air chamber,

rear axle is 30/30 air chamber.

Accessory

One tooling boxes ,

Two spare tire carrier, Two fire extinguisher

Tanker side thickness

12 mm

Electrical System

24V, 7core socket, lights according to European standards.

Tool Box

1 box of standard tools

material

Q370R

Standard

Configurations

Safety valve cover, single-fluid two-valve boxes, legs,

traction pins, liquid level gauge, pressure gauge, thermometer,

emergency cut off valves, fire extinguishers, fire star cover,

anti-static grounding tape, fence, tire fenders

Others

Filling medium: liquefied petroleum gas (propane);

design pressure 1.71Mpa,

design temperature 50°C,

Filling factor: 0.42t/m3,

corrosion margin: 1mm

Standard

AD-MERKBLÄTTER 2000 (ADM) Steel Pressure Vessels, Pressure Vessel Safety technical monitoring procedures, liquefied gas tanker safety inspection
