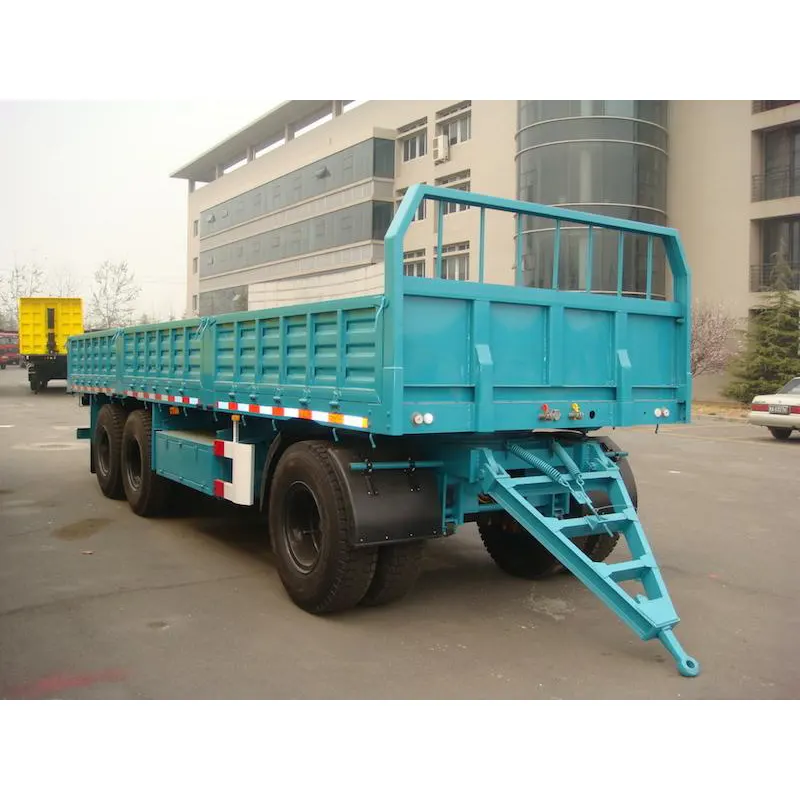

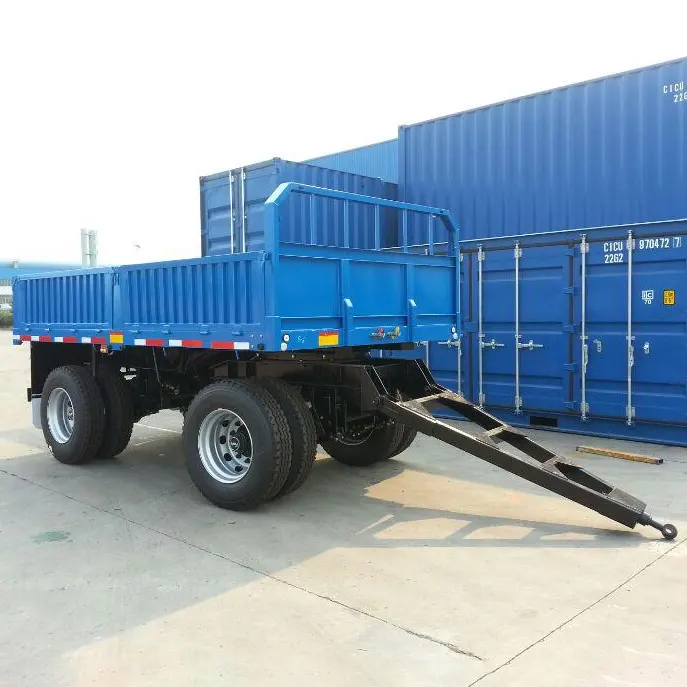

Tri-axle Dropside Drawbar Trailer for Bulk Cargo

Specification:

Tri-axle Dropside Drawbar Trailer for Bulk Cargo

Type:

Model

JPT9390TP

Dimension:

A

Length:

10,000mm

Width:

2,500mm

Height:

1,500mm

B

Length:

11,000mm

Width:

2,500mm

Height:

1,500mm

Frame & Structure:

Main beam:

Material Q345B. Fabricated “H” beam height 500mm, Top flange thickness 12mm, Middle web thickness 6mm, Bottom flange thickness 14mm

Side beam:

14# channel steel

Platform:

2.5 mm thick diamond plate with supporting channel, 4 lines 40*30 shaped steel

Kingpin:

 2’(50#), bolted in type

Twist lock:

8 sets twist locks

Welding standard:

All welding are to be done by qualified welder per applicable national standard

Painting:

Shot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um

Running gear:

Suspension:

 mechanical suspension,heavy duty leaf spring 10x13mmx90mm, China

Axle: A

28T Capacity Bogie, China

Axle: B

Fuwa brand 3pcs*13 ton capacity, China

Brake system:

Dual line pneumatic brake, SAE hose and connector,without ABS

Brake chamber:

4 units T30/30 spring brake chambers, 2 units T30 brake chambers

Air tank:

40L, 2 pcs, China

Tire: A

11R22.5, .8 +1pcs. China

Tire: B

11R22.5, .12 +1pcs. China

Rim:A

8.25*22.5 steel disc wheel, 10 holes ISO, 8+1 pcs. China

Rim:B

8.25*22.5 steel disc wheel, 10 holes ISO, 12+1 pcs. China

Landing gear:

Fuwa 28T two speed telescopic manual landing gear

Electrical System:

Voltage:

24 Volt

Receptacle:

7 way socket SAE standard, China

Front marker lamp:

White

Side marker lamp:

White & Red

Rear lamp:

Red

Turn signal lamp:

Amber

Reflector:

Per customer requirement

Wiring:

Electric cable protected by PVC conduit on main frame

Accessories:

Mud guard:

Steel mud guard

Spare wheel carriers:

2 pcs

Tool box:

1 pcs

Note: All the details not mentioned above should comply with Chinese regulations. If any component or structure changed, the price shall be modified accordingly.

SHIPMENT: 01 Set/40HQ

Lead Time: 30-40 working days after the deposit date.
