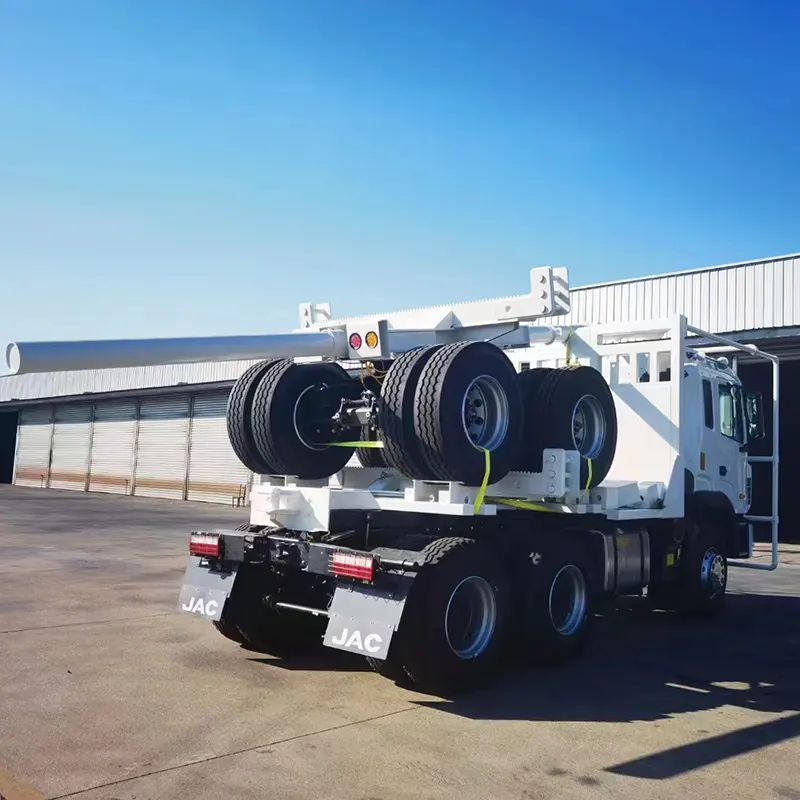

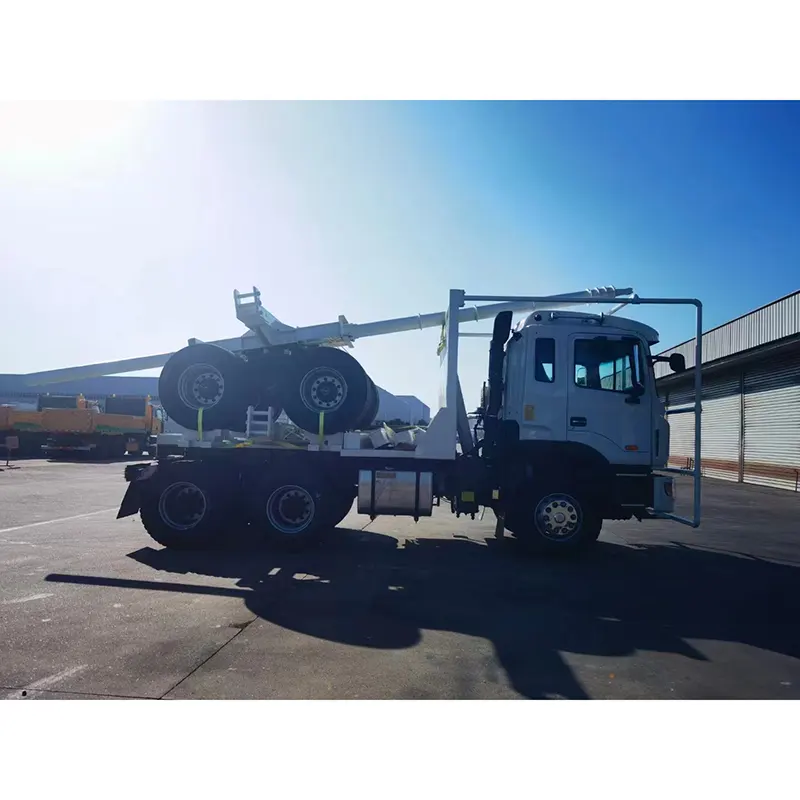

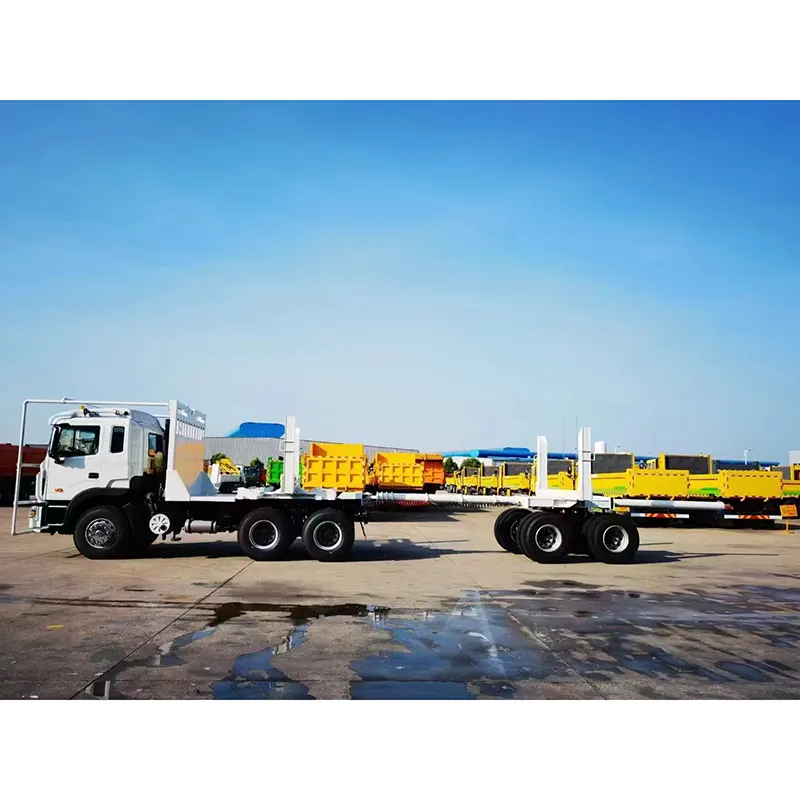

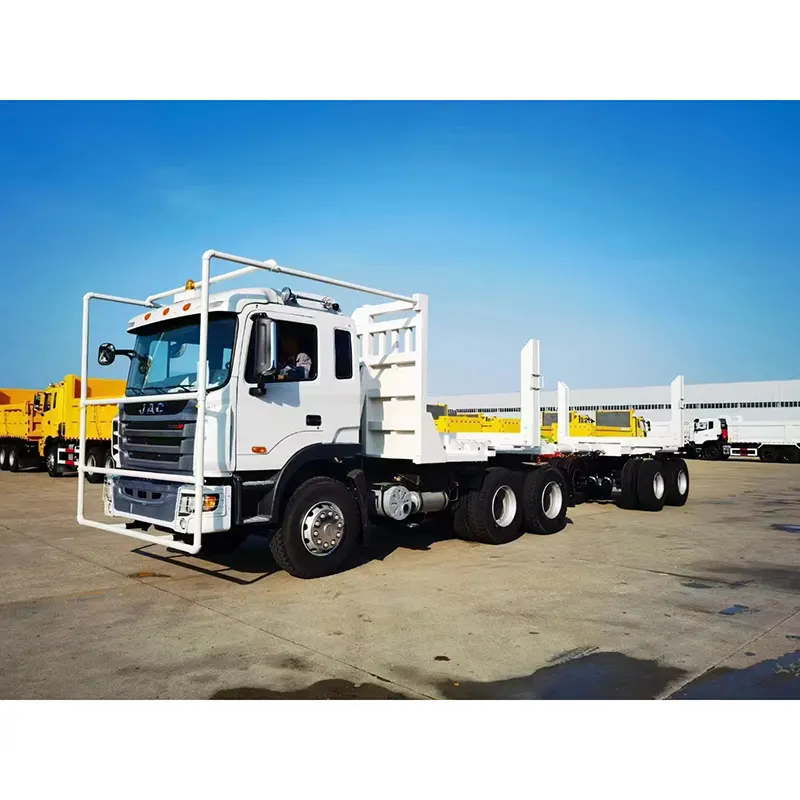

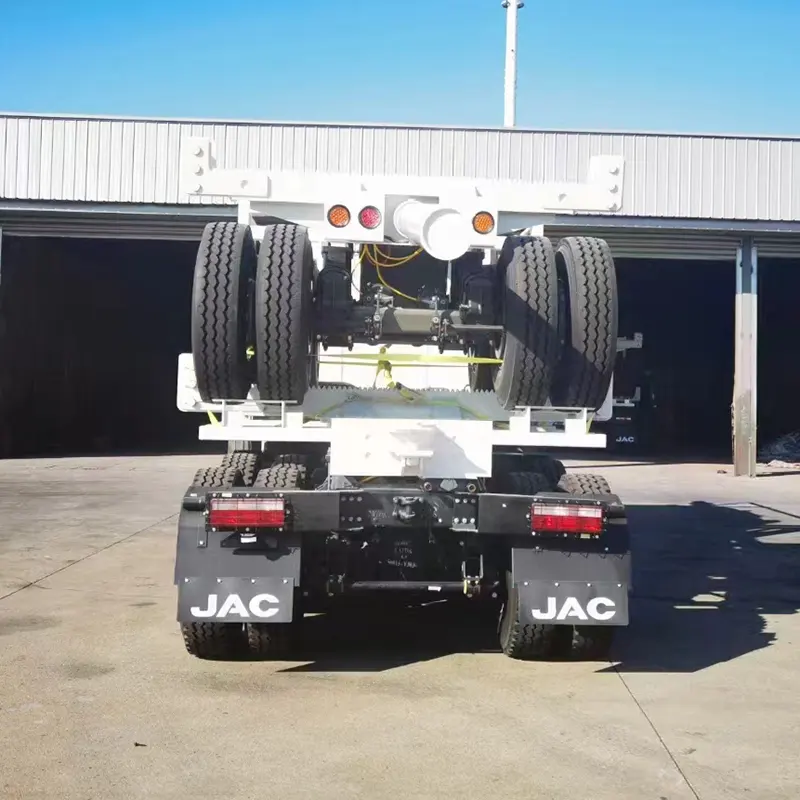

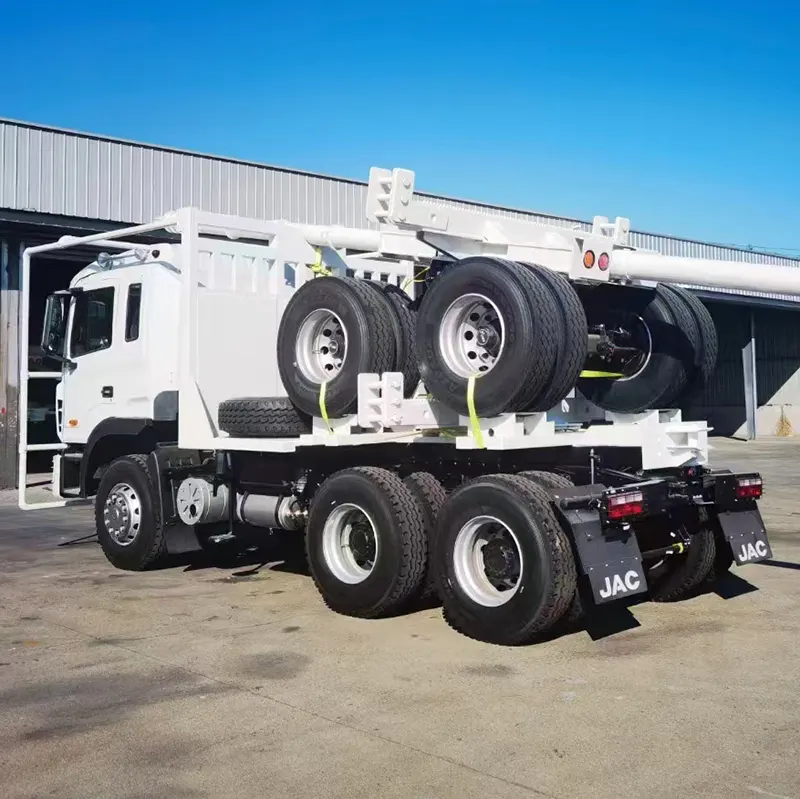

Heavy Duty Benbei Log Trailer Truck with Euro Iv Emission
  • Heavy Duty Benbei Log Trailer Truck with Euro Iv Emission - 0 Heavy Duty Benbei Log Trailer Truck with Euro Iv Emission - 0
  • Heavy Duty Benbei Log Trailer Truck with Euro Iv Emission - 1 Heavy Duty Benbei Log Trailer Truck with Euro Iv Emission - 1
  • Heavy Duty Benbei Log Trailer Truck with Euro Iv Emission - 2 Heavy Duty Benbei Log Trailer Truck with Euro Iv Emission - 2
  • Heavy Duty Benbei Log Trailer Truck with Euro Iv Emission - 3 Heavy Duty Benbei Log Trailer Truck with Euro Iv Emission - 3
  • Heavy Duty Benbei Log Trailer Truck with Euro Iv Emission - 4 Heavy Duty Benbei Log Trailer Truck with Euro Iv Emission - 4
  • Heavy Duty Benbei Log Trailer Truck with Euro Iv Emission - 5 Heavy Duty Benbei Log Trailer Truck with Euro Iv Emission - 5

Heavy Duty Benbei Log Trailer Truck with Euro Iv Emission

You can rest assured to buy customized Heavy Duty Benbei Log Trailer Truck with Euro Iv Emission from us. We look forward to cooperating with you, if you want to know more, you can consult us now, we will reply to you in time! JUPITER is a large-scale semi trailer and special vehicles manufacturer and supplier in China. We have been specialized in semi trailer and special vehicles for more than 38 years. Our Heavy Duty Benbei Log Trailer Truck with Euro Iv Emission with FUWA 13T axle have a good price and quality advantage and had already exported to the Asia, Africa and South America countries. We look forward to becoming your long-term partner in China.

Send Inquiry

Product Description

This JUPITER 40ft 3-axles LOG semi trailer is suitable for carrying ISO 20FT and 40FT containers, bulk cargo such as steel,stone which are mostly used in short and long distance transportation. 40ft 3-axles LOG semi trailer with Mechanical suspension is the best choice for the transportation and operation of bulk cargos,20ft and 40ft container van box with high efficiency and economic return, we use famous brand parts on 40ft 3-axles LOG semi trailer r with Double Coin 12R22.5 Tire, such as FUWA or BPW Brands Axle, JOST King Pin.so we recommend the end users or drivers to choose this 40ft 3-axles LOG semi trailer with FUWA JOST 2 inch 3.5 inch king pin and welcome to inquiry about our40ft 3-axles LOG semi trailer.

Type

Heavy Duty Benbei Log Trailer Truck with Euro Iv Emission

Model

FTW9406

Parameter

Dimension(mm)

length×width×height:12420×2500×3560mm

King Pin Setting(mm)

1000

Fifth Wheel Height(mm)

The height will be adjusted according to the tractor specification

Axle Space(mm)

7200+1310+1310

Tare Weight（kg）

7,500

Payload（kg）

45,500

Fabric

Main Beam(mm)

500, submerged arc welding Q345B

Flange and Web(mm)

14/8/16

Flooring

3mm Checkered Plate

Wood Carrier

yes

Paint

primer + top coat

OEM

Landing Gear

FUWA 19”

Kingpin

50＃，FUWA

Brake System

30/30 type onrear two axles with brake valve

ABS

No

Suspension

Mechanical suspension with8 leaf spring

Axle

FUWA L1 BPW 13T. Number: 3

Tire

Double Coin Brand12R22.5-18PR, Number:12

Rim

9.0*22.5 Number:12

Tool box

1 set on right side, 1m, steel

Spare Tire Carrier

equipped2 sets per chassis

Color



According to customer’s requirements

Others



l “LONG VEHICLE” sign on the rear end.

l LED lights，equip side turn light.

l Main beam: stick “JUPITER” logo

l Mud flap: stick “JUPITER ”

l Nameplate: English model
